Our Energy Storage Systems

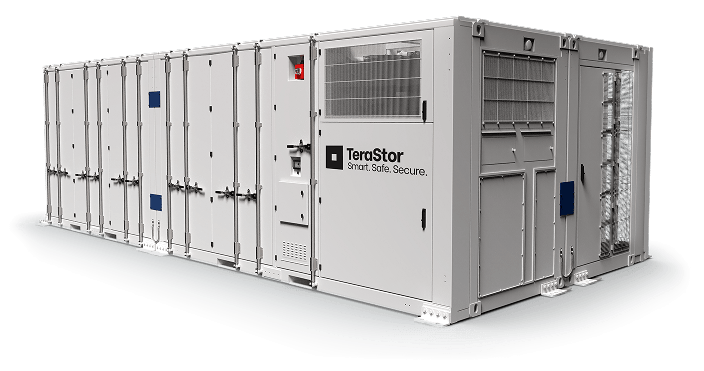

P7000
Dischargeable Energy7 MWh
Rated DC Power3.4 MW
Output Voltage Range1164-1500 VDC
Auxiliary Power30 kW
Auxiliary Input Voltage480V 3P
Dimensions (WxDxH)27'×12.5'×8' ft
Weight (lbs)*Ships in 4 separate "quarter blocks" each weighing less than 45,000 lbs.
Ingress protectionIP56
CoolingLiquid
Cell ChemistryLFP
Operating Temp Range-20 to 50 °C
Certifications & StandardsUL 9540, UL 1973, UL 9540A, UN 38.3, NFPA 69, NFPA 855
Warranty5 yrs Std - 20 yrs Ext.
