Our Energy Storage Systems

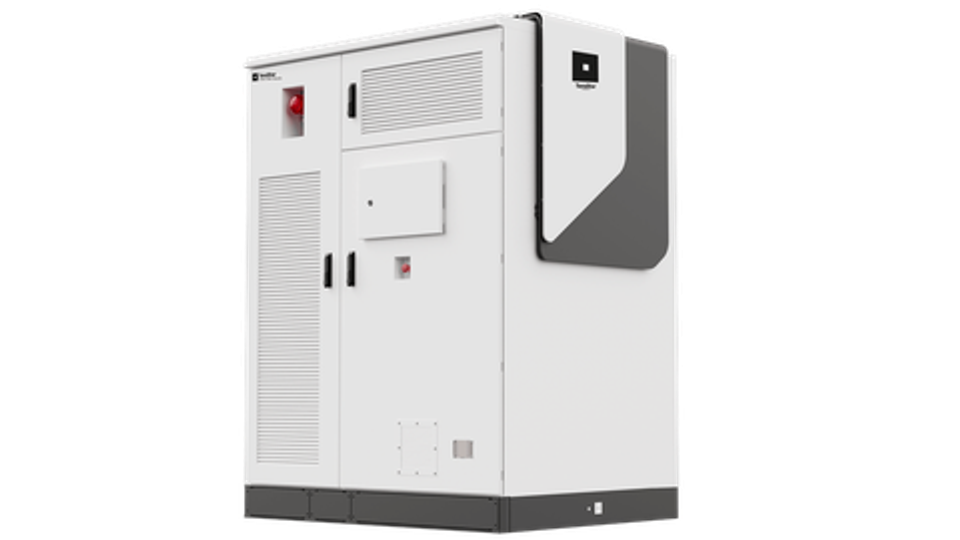

S200
Nominal Capacity233 kWh
Usable Capacity (95% DoD)221.35 kWh
Rated AC Power125 kW
Output AC Voltage480 VAC
PV Input Voltage200 - 950 VDC
Dimensions (WxDxH)5.2'×4.3'×7.2' ft
Weight7,300 lbs
Environmental protectionIP54
CoolingLiquid
Cell ChemistryLFP
Certifications & StandardsUL 9540, UL 1973, UL 9540A, UN 38.3, NFPA 69, NFPA 855
Warranty10 yrs
