Our Energy Storage Systems

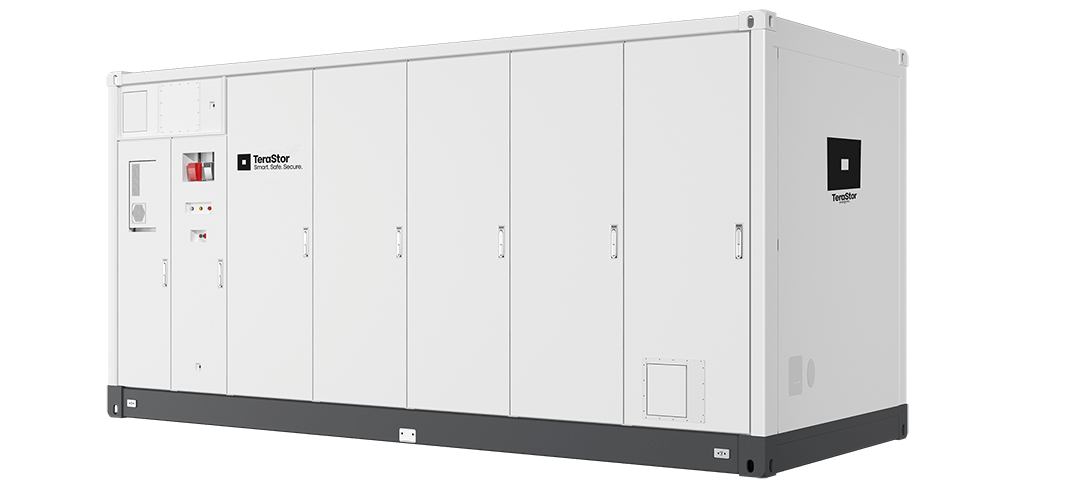

S4000
Dischargeable Energy4.07 MWh
Rated DC Power2 MW
Output Voltage Range1,164-1,498 VDC
Auxiliary Power30 kW max
Auxiliary Input Voltage480V 3P
Dimensions (WxDxH)19.9'x8.0'x9.5' ft
Weight83,775 lbs
Environmental protectionIP55
CoolingLiquid
Cell ChemistryLFP
Operating Temperature Range-30 to 50 C
Certifications & StandardsEN IEC 62619, IEC 63056, IEC 60730 Annex H, UL 1973, CE LVD ESS EN 62477-1, AK Certificate IEC 62040-1, CE EMC ESS EN 61000-6-2/-4, Emission EN 55011, CISPR11, TUV mark ESS IEC 62933-5-2, Test Reports IEC 62933-5-1/-2-1 with EVE Rack, AS/EC 61439-1/-2, UL9540, UL9540A, NFPA69, UN38.3
Warranty5 yrs Std - 20 yrs Ext.
