Our Energy Storage Systems

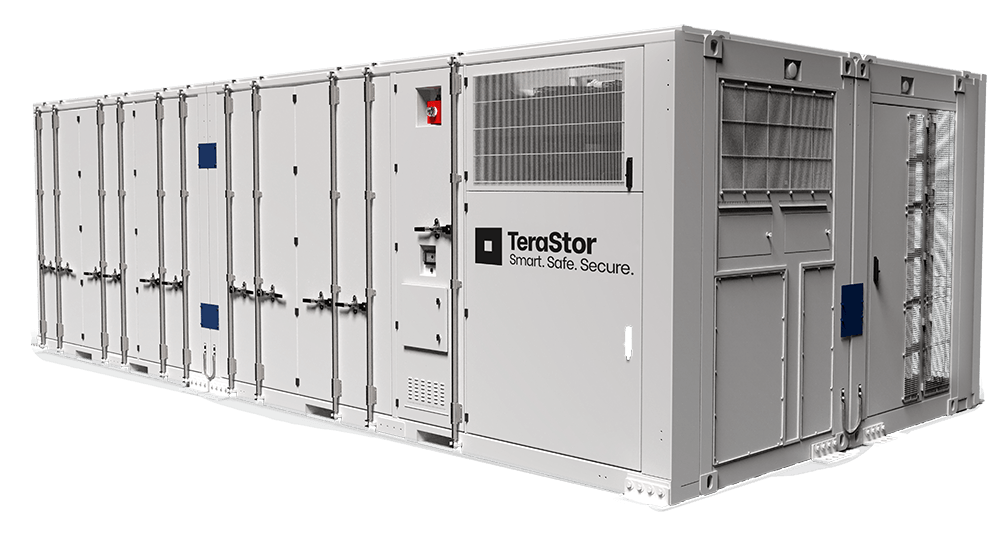

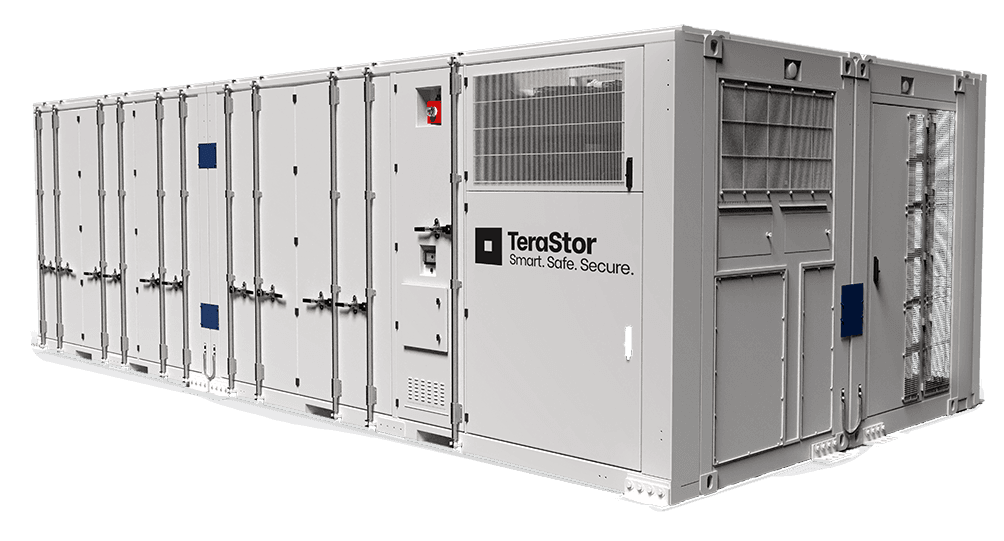

P8000
Dischargeable Energy8.2 MWh
Rated DC Power3.6 MW
Output Voltage Range1,164-1,500 VDC
Auxiliary Power30 kW max
Auxiliary Input Voltage480V 3P
Dimensions (WxDxH)27'x12.5'x8' ft
Weight (lbs)*Ships in 4 separate "quarter blocks", each weighing less than 45,000 lbs.
Ingress protectionIP66
CoolingLiquid
Cell ChemistryLFP
Operating Temperature Range-20 to 50 C
Certifications & StandardsUL 9540, UL 1973, UL 9540A, UN 38.3, NFPA 69, NFPA 855
Warranty5 yrs Std - 20 yrs Ext.
