Our Energy Storage Systems

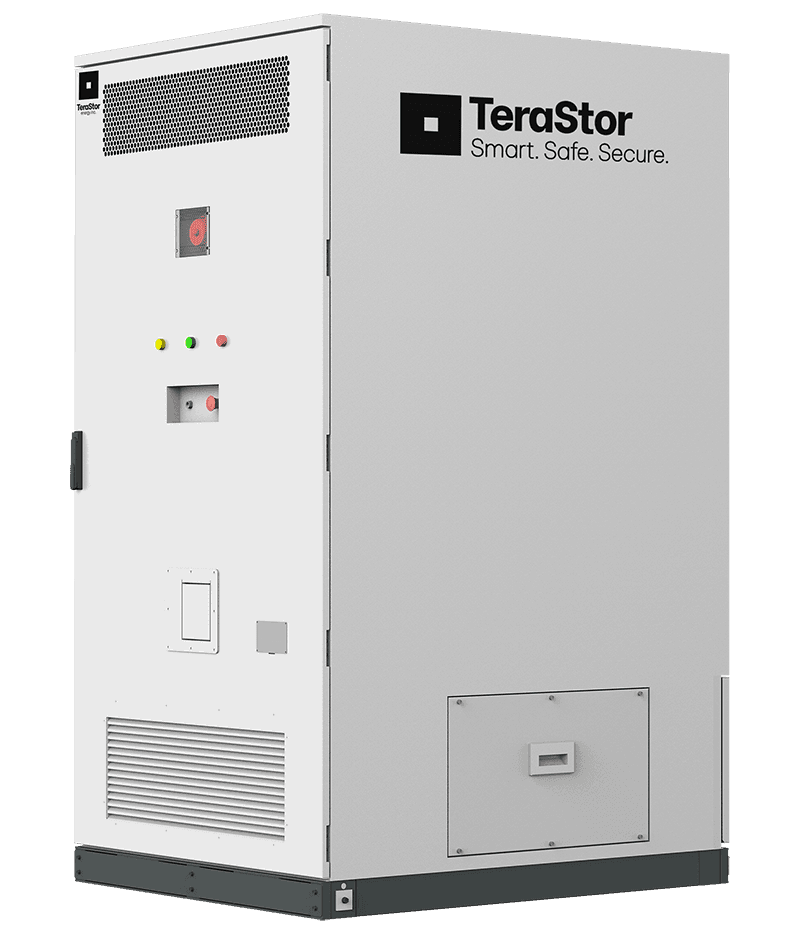

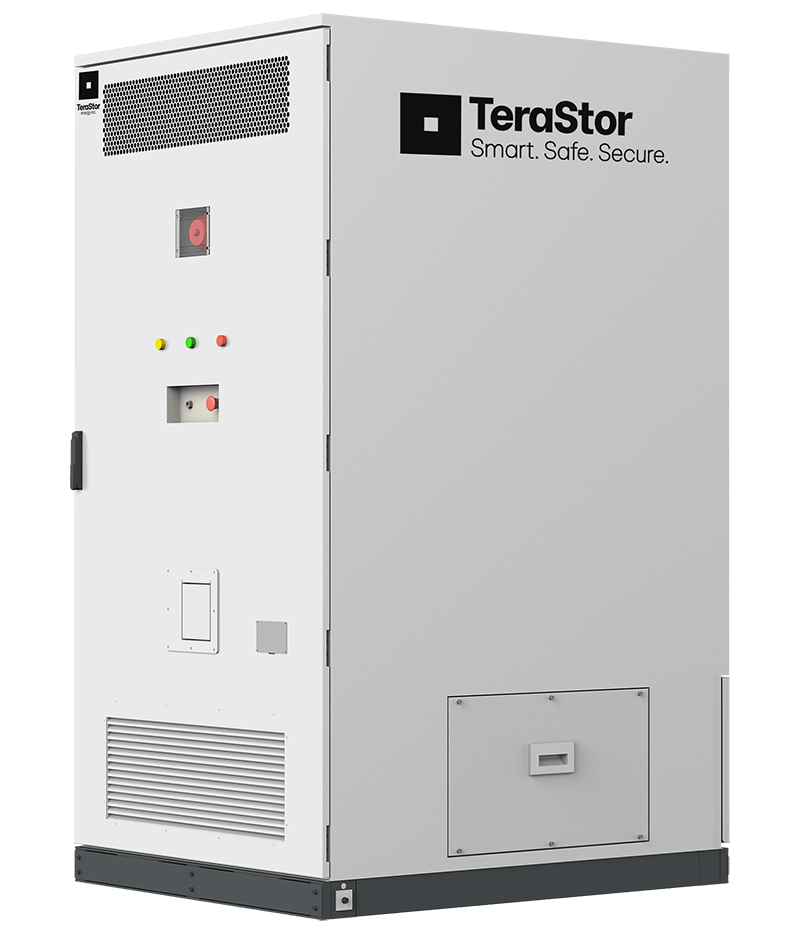

S300
Nominal Capacity261 kWh
Usable Capacity (95% DoD)247.95 kWh
Rated AC Power125 kW
Output AC Voltage400 VAC
PV Input Voltage689-930.8 VDC
Dimensions (WxDxH)3.7'x4.54'x7.64' ft
Weight5,952 lbs
Environmental protectionIP54
CoolingLiquid
Cell ChemistryLFP
Certifications & StandardsIEC 62619, IEC 63056 (62477-1 & 62619 Cover), IEC 60730-1 Annex H, EN 62477-1, EN 62040-1, EN 61000-6-2/-4 (EMC), EN 62933-5-2, VDE-AR-E 2510-50, UN 38.3
Warranty10 yrs
